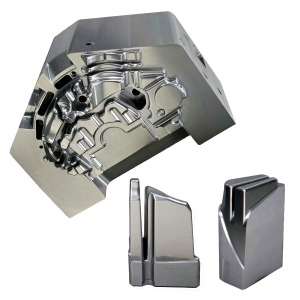

DT Beta DT

Plasma Nitriding + Aluminium Chromium Titanium Nitride (AlCrTiN)
Read Specifications

DT Beta DT

Plasma Nitriding + Aluminium Chromium Titanium Nitride (AlCrTiN)
Hardness (HV)
3300±300
Thickness (Microns)
3-5μm
Friction Coefficient
0.6
Color
Dark Grey
Max Operating Temp.
900°C (1650°F)
Key Characteristics
50% more tool life over best pvd coatings, .002" case depth, zero white layer, High oxidation temparature.
Primary Applications
Low tool maintenance, high productivity, improved part quality, high oxidation temparature and thermal stability , superior abrasion and erosion resistance, excellent for hot nad cold forging, hot stamping, high pressure aluminum die casting

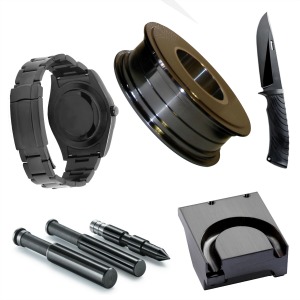

DLC Beta DLC

CR CARBON BASED COATING
Read Specifications

DLC Beta DLC

CR CARBON BASED COATING
Hardness (HV)
1800±200
Thickness (Microns)
1.5-2.5μm
Friction Coefficient
0.5-0.10
Color
Black
Max Operating Temp.
400°C (750°F)
Key Characteristics
very dense and smooth coating, low friction coefficient, biocompatible
Primary Applications
Excellent for injection molding tools, surface and ejectors as well as sliding elements, precision components, engine and gearbox components, paper slitters, industrial blades

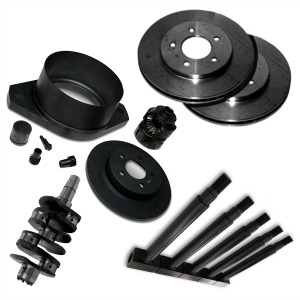

LN Beta LN

Liquid Nitriding (CLIN)
Read Specifications

LN Beta LN

Liquid Nitriding (CLIN)
Hardness (HV)
1200
Thickness (Microns)
10-50μm
Friction Coefficient
0.2
Color
Solid Black
Max Operating Temp.
800°C (1470°F)
Key Characteristics
High hardness, no micro cracks, better lubrication retention, higher fatigue resistance.
Primary Applications
Excellent for automotive applications, brake rotors,shafts, engine valves, hand guns, rifles, plastic injection molding, wear components,forging applications, mechanical components.

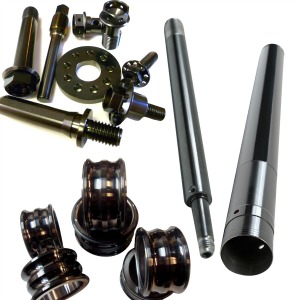

MD Beta MD

Molybdenum Disulfide (MoS2)
Read Specifications

MD Beta MD

Molybdenum Disulfide (MoS2)
Hardness (HV)
500
Thickness (Microns)
1μm
Friction Coefficient
0.1
Color
Shiny Black
Max Operating Temp.
400°C (750°F)
Key Characteristics
Good Coating Adhesion, dry lubricant film, low coefficient of friction,coating is applied at 200°C max.
Primary Applications
Excellent for Aluminium machining, forming and punching tools for stainless steels, non-ferrous metals and aluminium alloys, aluminium forging, ball bearing, sliding parts.

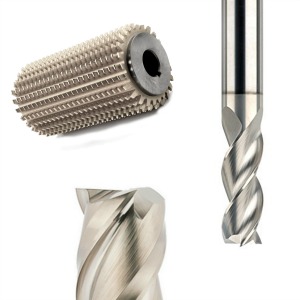

TB2 Beta TB2

Titanium Diboride (TiB2)
Read Specifications

TB2 Beta TB2

Titanium Diboride (TiB2)
Hardness (HV)
4000±200
Thickness (Microns)
1-2μm
Friction Coefficient
0.45
Color
Silver Grey
Max Operating Temp.
850°C (1562°F)
Key Characteristics
High hardness and adhesive strength, excellent wear resistance, reduces built up edge
Primary Applications
Excellent for machining silicon aluminium alloys, titanium, magnesium & copper alloys.

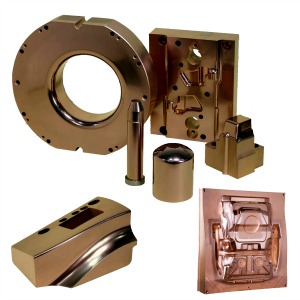

DV Beta DV

Plasma Nitriding + Titanium Aluminium Nitride (TiAlCN)
Read Specifications

DV Beta DV

Plasma Nitriding + Titanium Aluminium Nitride (TiAlCN)
Hardness (HV)
3500±500
Thickness (Microns)
4-6μm
Friction Coefficient
0.2
Color
Old Rose
Max Operating Temp.
800°C (1470°F)
Key Characteristics
50% more tool life over best pvd coatings, .002"-.004" case depth, zero white layer.
Primary Applications
High strength metal forming, cold forging, blanking, trimming, plastic injection molding and extrusion applications reduced lubricant consumption, longer tooling life.
